| Vertical Segment | Desktop |

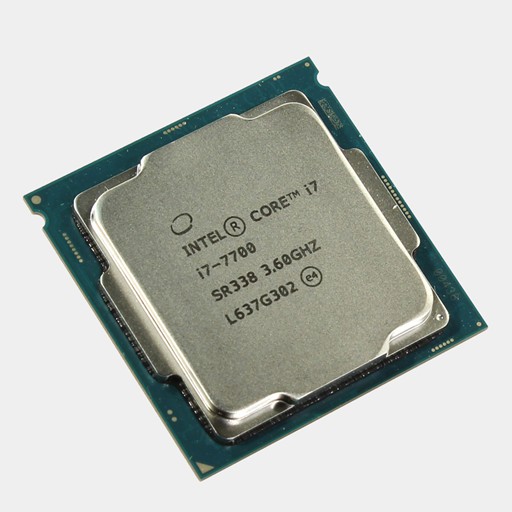

| Processor Number | i7-7700 |
| Clock Speed | 3.6 GHz |
| Max Turbo Frequency | 4.20 GHz |
| Number of Cores | 4 Cores |
| Number of Threads | 8 Threads |
| Cache | 8 MB Smart Cache |
| Bus Speed | 8 GT/s DMI3 |
| Instruction Set | 64-bit; SSE4.1/4.2, AVX2 |
| Max TDP | 65 W |
| Memory | Max. 64 GB; Types: DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V; Channels: 2 |
| Graphics | Intel HD Graphics 630 |
| 4K Support | Yes, at 60Hz |
| Max Resolution | 4096x2304@24Hz |
| DirectX Support | 12 |
| OpenGL Support | 4.4 |
| Video Features | Intel Clear Video HD Technology; Intel Clear Video Technology; Intel InTru 3D Technology |
| Number of Displays Supported | 3 |
| PCI Express Features | Up to 1x16, 2x8, 1x8+2x4 |
| Max Number of PCI Express Lanes | 16 |
| Advanced Features | Idle States; Enhanced Intel SpeedStep® Technology; Thermal Monitoring Technologies; Intel® Identity Protection Technology; Intel® Stable Image Platform Program (SIPP); Intel® AES New Instructions; Secure Key; Intel® Software Guard Extensions (Intel® SGX); |
| Environment | T Junction: Max. 100°C |
| Dimension | Package Size: 37.5mm x 37.5mm |
